Glanceable:
Explorations on Information Density

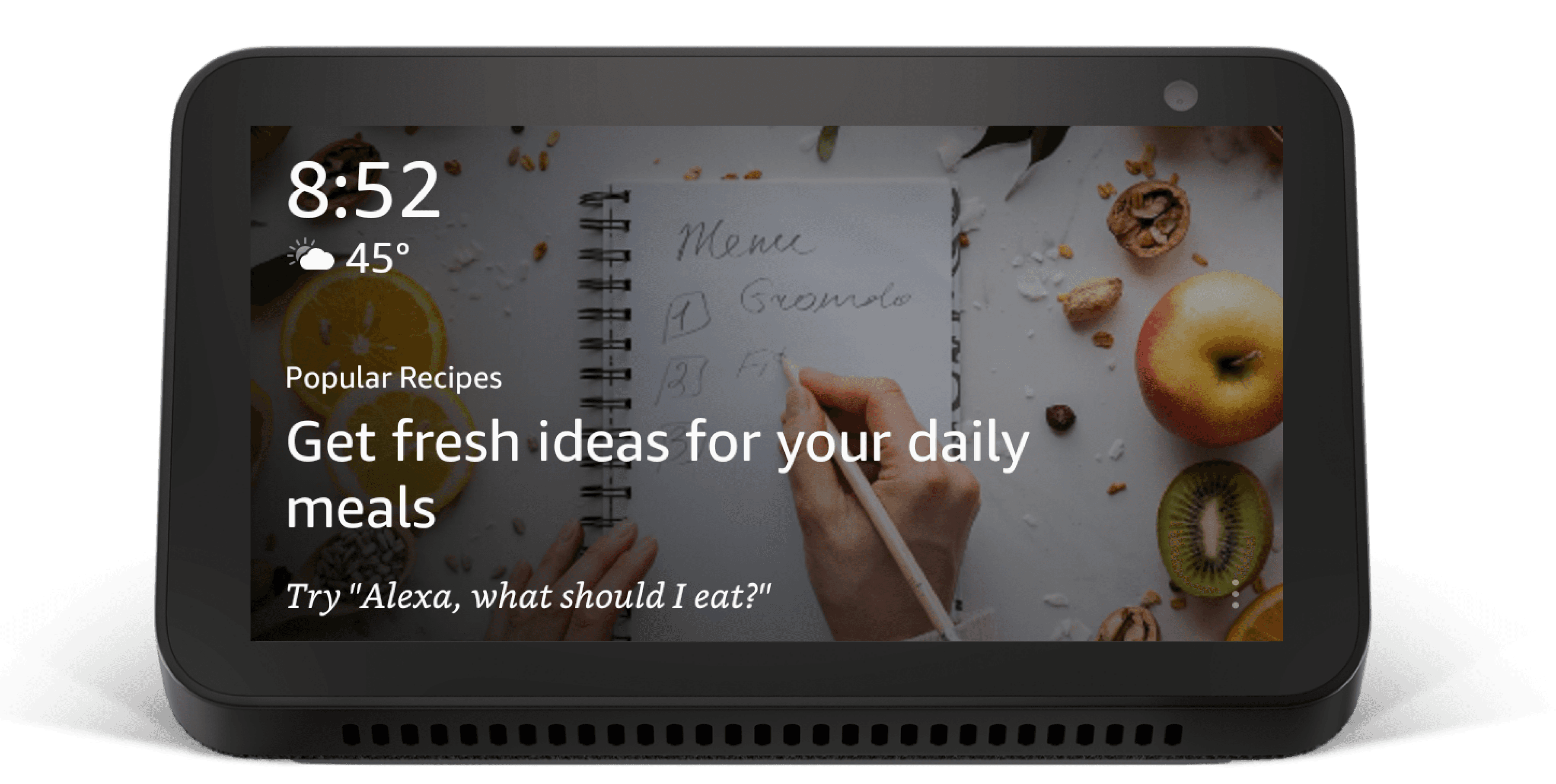

Explorations on curating information on a small communal screen from distances cited in product design brief.
Project contributions:
applied research
visual design
accessibility studies
lead UX design
Goal: Glanceable information from 10+ feet.
Problem: User feedback confirmed existing text size was only viewable from 3-4 feet and pace/info density were high mental load.
What’s the most important information and what can be simplified?
Are there improvements for accessibility?
Can the user see this information when they enter their space?

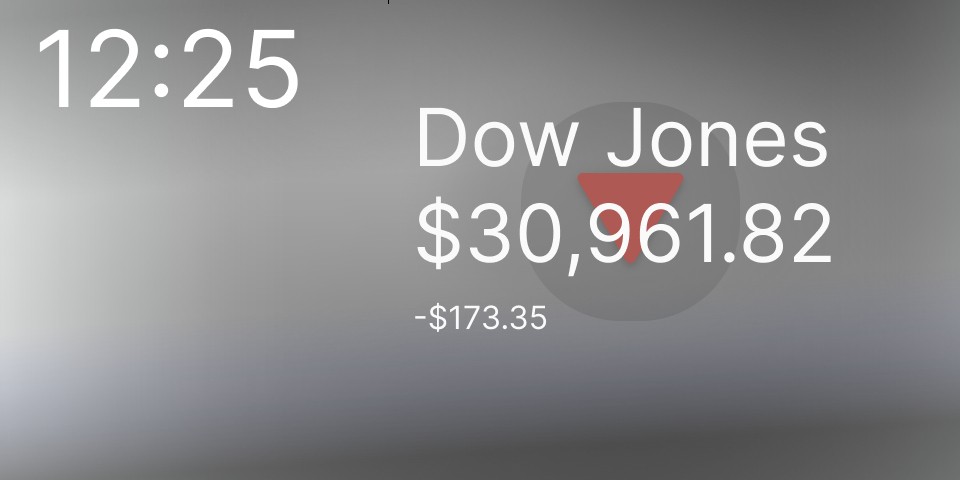

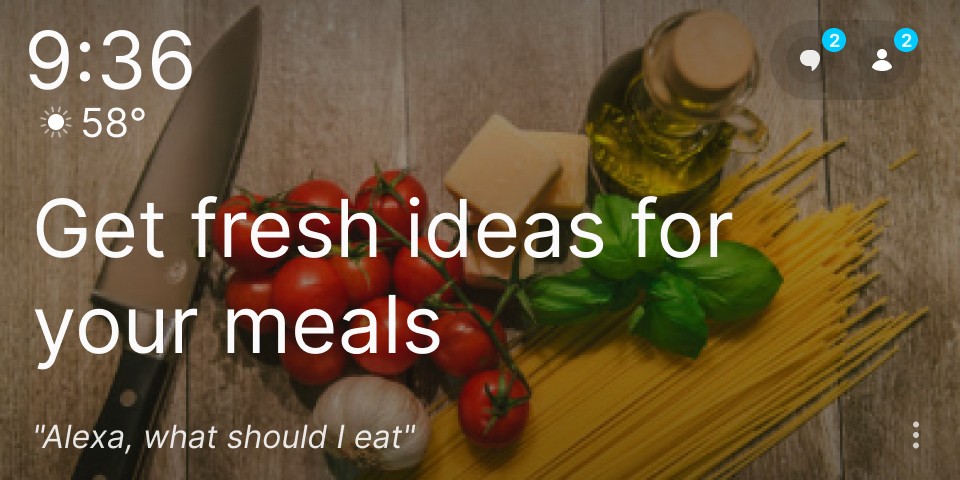

Solution 1: Clock and Headline Prioritized
Primary information from 6’. Minimal element updates
Primary information of Clock and Headline are prioritized for 6’ viewing.
Removed secondary elements. Reduced Headline to 2 lines.
Familiar design that balances lower engineering lift and incremental information density improvements.
NOTE: Default card duration is 10 seconds. Example below is 3 second intervals.

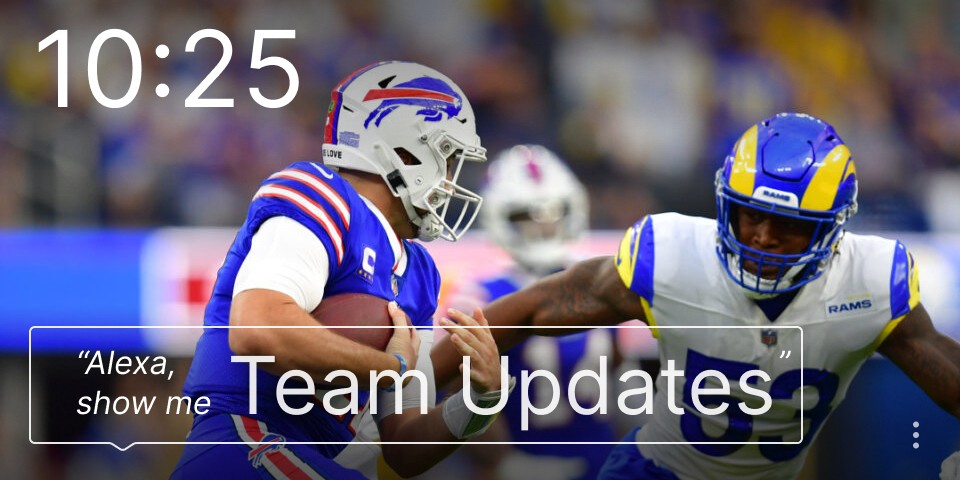

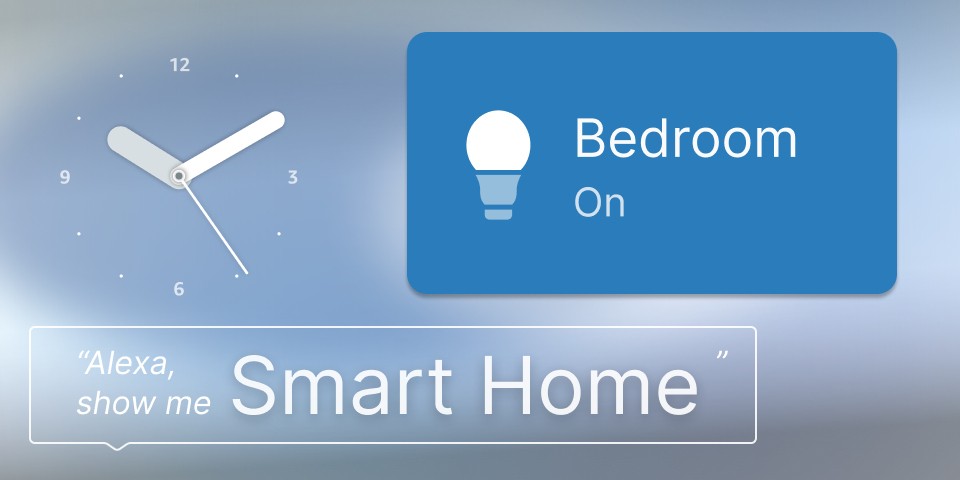

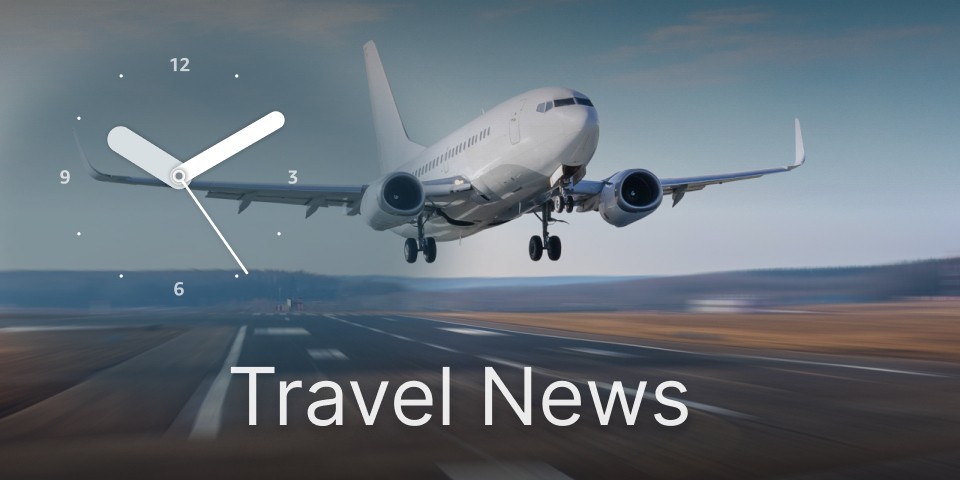

Solution 2: Combined hint headline for tap/voice

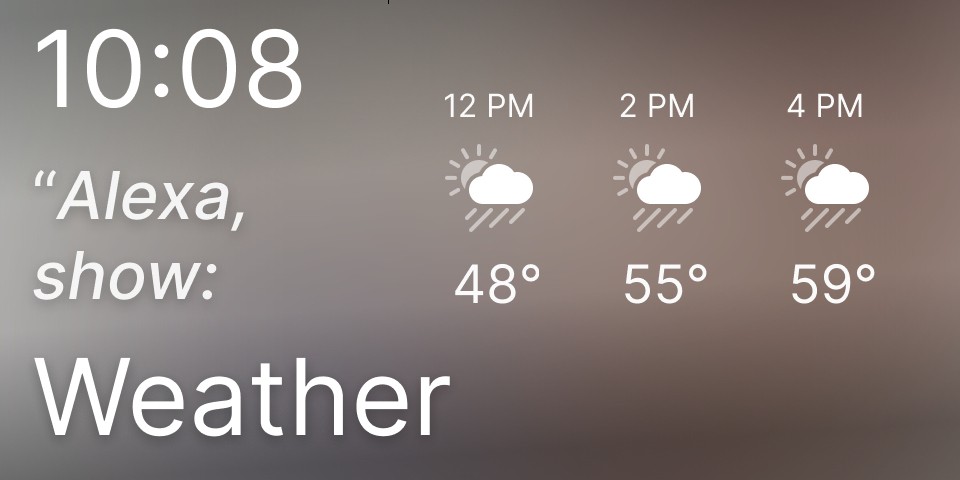

Clock at 8’ visible, Keyword hint is 6’ visible
Visuals and stylized backgrounds used and card has heavy reduction of text information.
Smaller text results in 4.5’ readability as tradeoff.

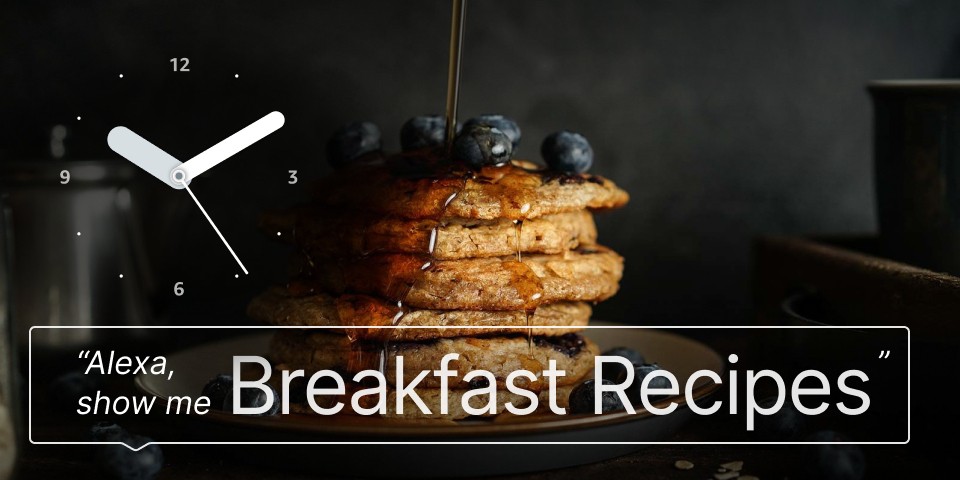

“Alexa, show me..” and word bubble used intermittently and repetitively to remind user that topics can be launched with voice
NOTE: Default card duration is 10 seconds. Example below is 4 second intervals.

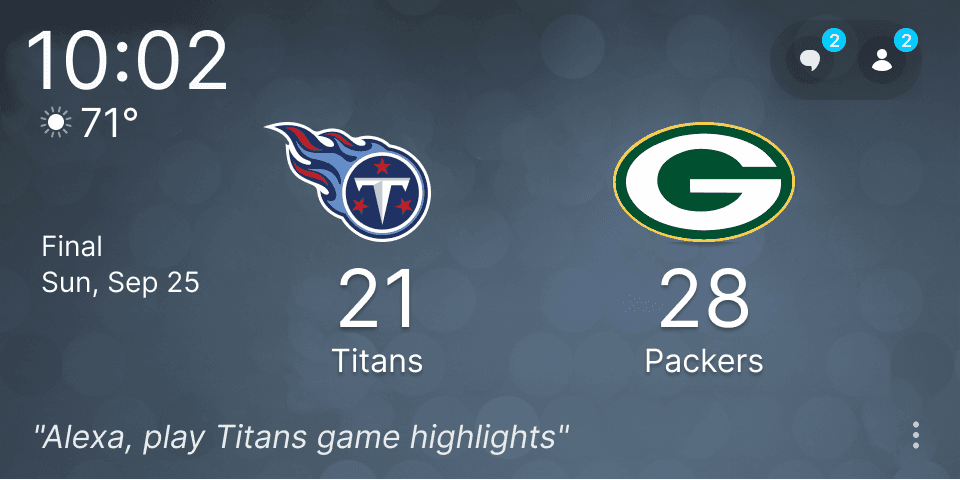

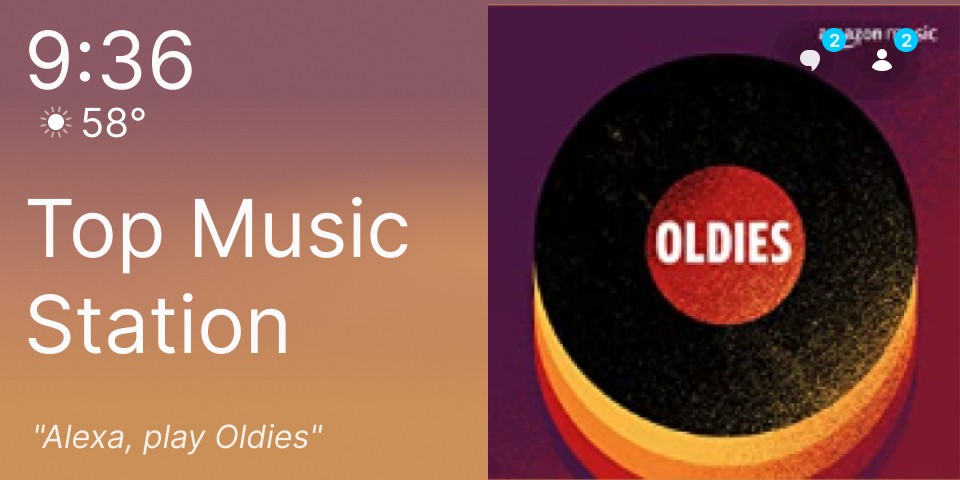

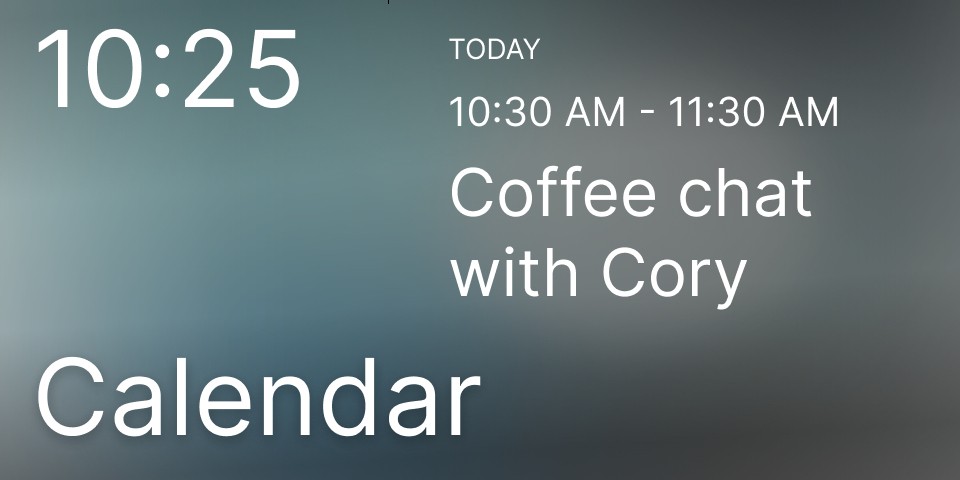

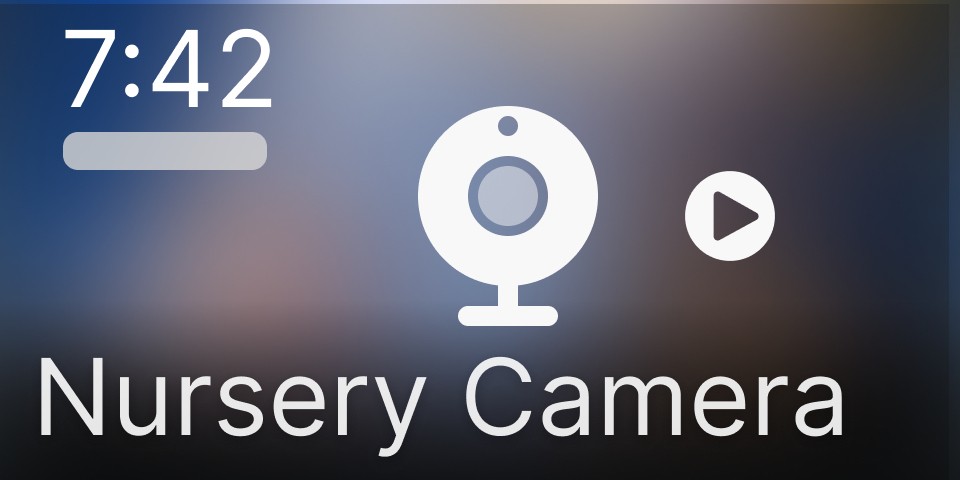

Solution 3: Oversized info on simple background
Large text and icons in high contrast with background
Clock is 108 pt (8’ visibility).
Simple visual in 240x240 square format (Album Art Format and Library Icon friendly)
Card Type is also voice-forward key word to start domain experience. 108 pt (8’ visibility).
CTA button oversized - 98x98.
NOTE: Default card duration is 10 seconds. Example below is 5 second intervals.

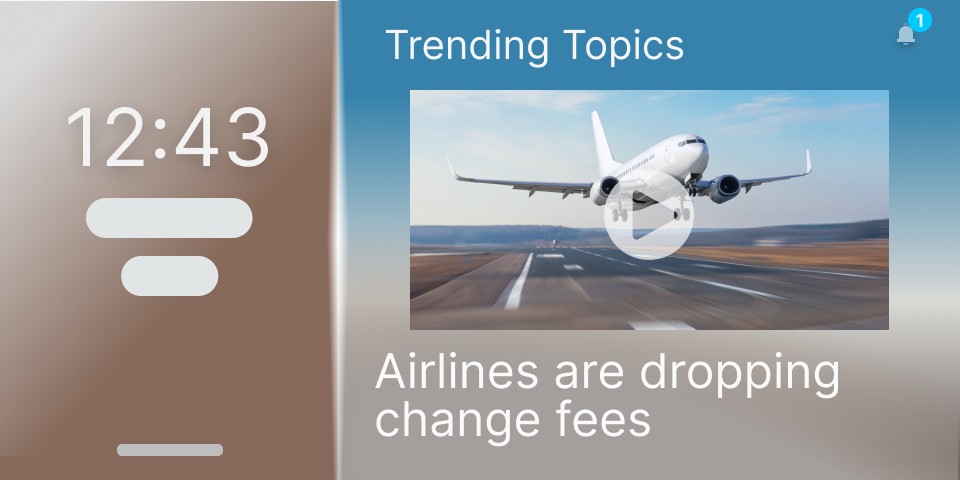

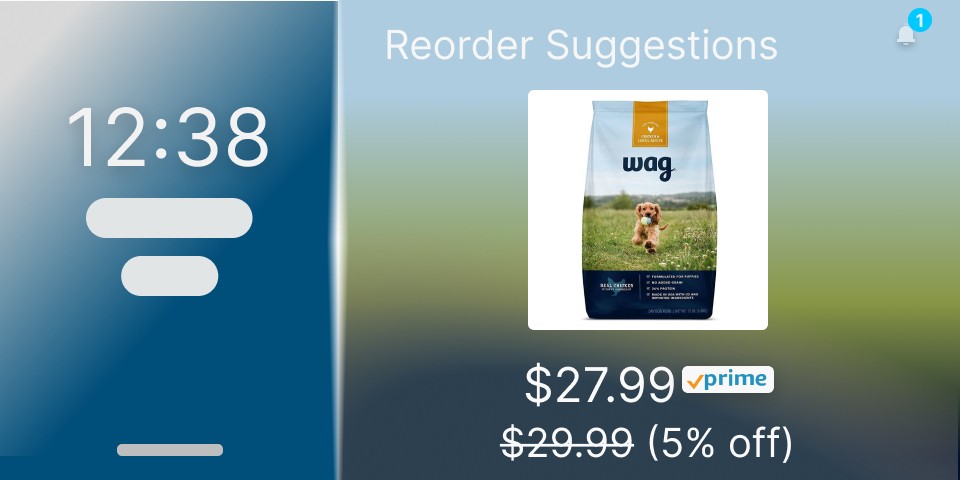

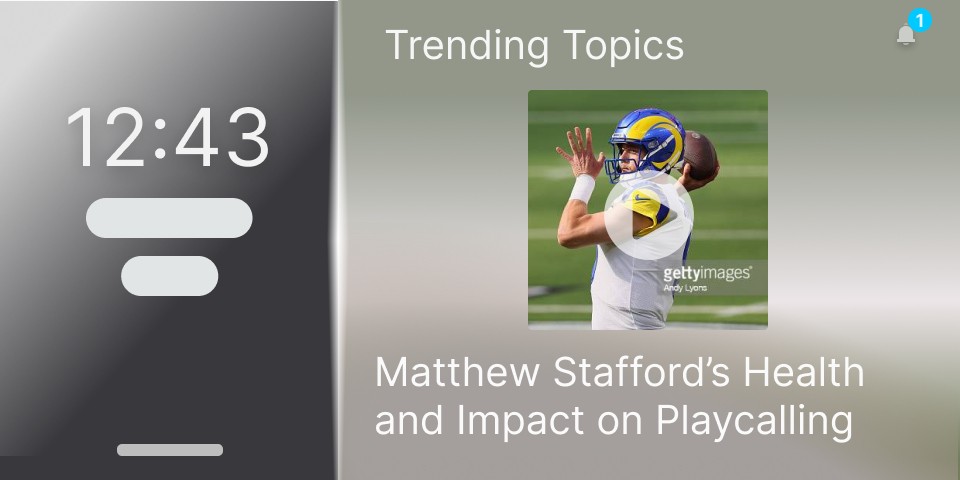

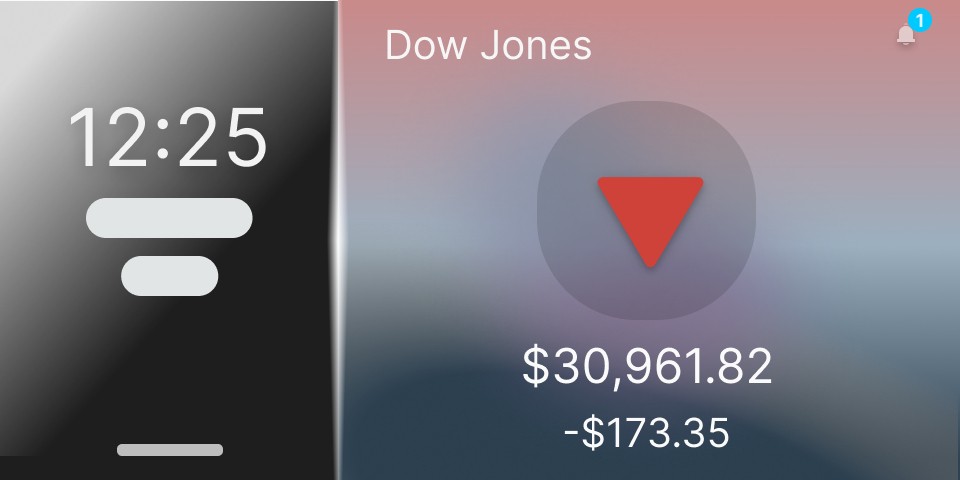

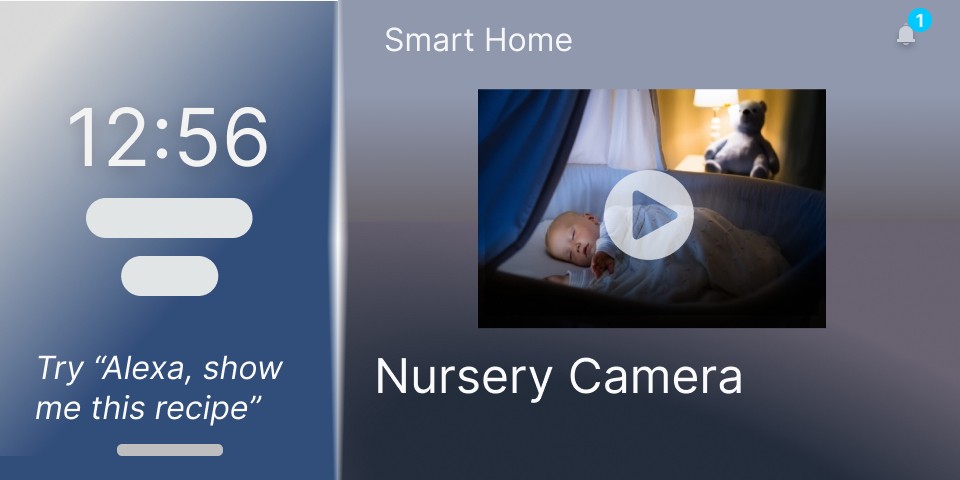

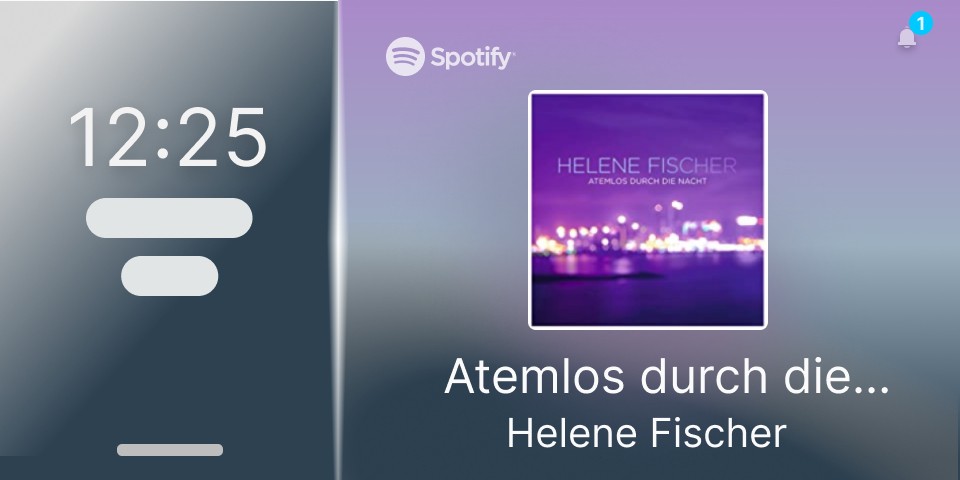

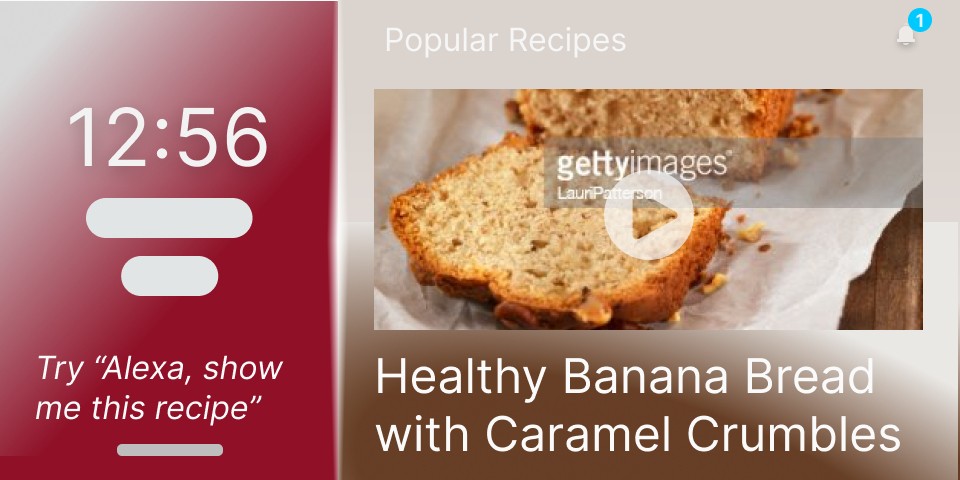

Solution 4: Persistent clock/weather with content
Fixed 33% screen for clock and weather
Time is viewable from 6’, headlines are viewable from 3’
Contained images reduce device memory requirements
Content aware backgrounds
66% screen allows for programming and customer interests
Hint for voice prompts intermittently appears under weather
NOTE: Default card duration is 10 seconds. Example below is 3 second intervals.
